How the Escapement Works

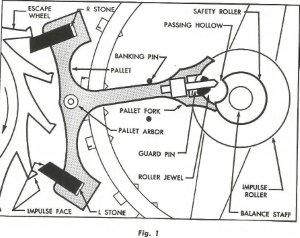

When energy is stored in the mainspring, by winding, the train wheels begin to turn. This energy is carried from the barrel through the center, tird and fourth wheels to the escapewheel, turning the wheel in the direction of the arrow shown in fig 1.

Considering the escapement as a unit, it can be seen that the escape wheel supplies the power, whereas the pallet transfers the rotary motion of the escape wheel into a back and forth motion of the pallet. The pallet in turn imparts motion to the jewel pin (roller jewel) which causes a vibratigng motion of the balance wheel.

Detailed sequence of excapement actions

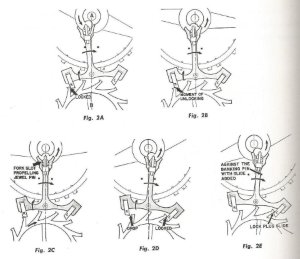

As the balance wheel swings, the jewel pin is carried back and forth across the center line of the escape wheel, pallet and balance wheel. Line AB in Fig. 2A.

As the jewel pin approaches the center line and when in the position shown in Fig. 2A. It enters and strikes the inside wall of the fork slot.

During the passage of the jewel pin over the center line, the fork is moved in the direction of the arrow (Fig. 2B), causing the R pallet stone to unlock an escape wheel tooth.At the instant of unlocking, the escape wheel toot is released, wich creates an impulse on the R pallet stone. This impulse forces the pallet stone out of the path of the tooth (Fig 2C).The impulse begins at the instant of unlocking. Instead of the jewel pin driving the fork, as was in the case in the unlocking period, the fork imparts a propelling forceagainst the jewel pin. This impulse action supplies the energy to maintain the balance wheel in motion.After the escape wheel tooth slides off the pallet stone, it travels a short distance know as drop, until another tooth locks on the opposite pallet tone (Fig 2D).The pallet is caused to move slightly farther than the locking point because of the draw. Draw may be described as a force which tends to hold the pallet afanst the banking pin. It is the result of the force exerted by the escpe wheel tooth on the locking force exerted by the escape wheel tooth on the locking face of the pallet stone. The amount of additional movement of the stone on the tooth is called slide (Fig. 2E).The balance wheel turns until the energy stored in it from the impulse is overcome by the tension of the hairspring, pivot friction and air resistance.

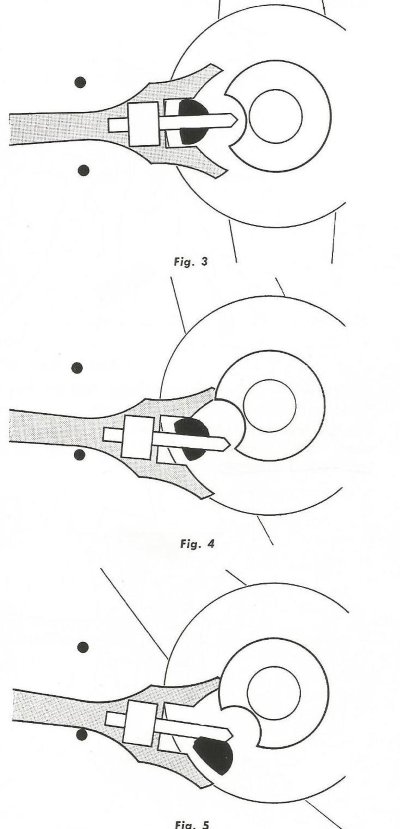

Jewel Pin Freedom (Fig 3)

Is the difference between the width of the fork slot and the width of the roller jewel.













Jewel Pin Shake (Fig 4)

is the space between the inside corners of the pallet fork and the front and
back of the roller jewel at the instant of “drop”











Jewel Pin Clearance (Fig 5)

Called fork horn clearance. This is the clearance for the roller jewel
in passing out and past the fork
horns.
